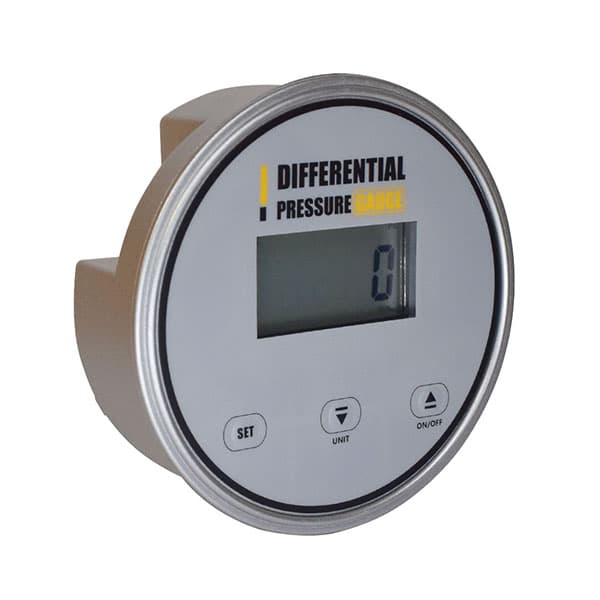

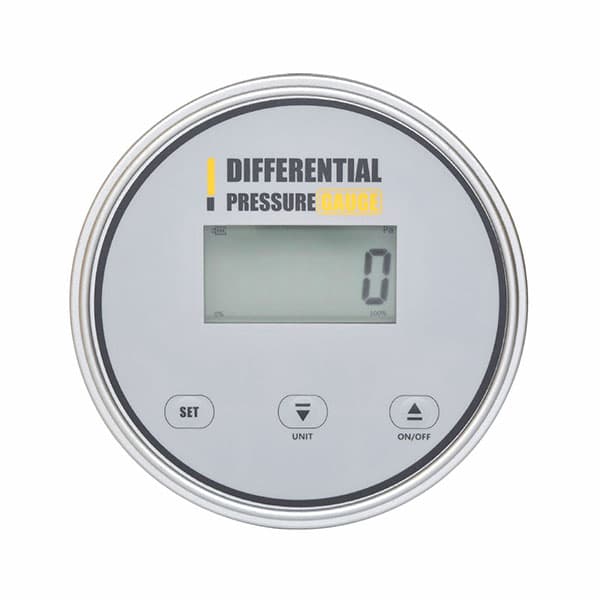

DR-S220 Differential Pressure Gauge Accuracy 1%FS AA Battery Powered Range -5Kpa to 5Kpa

$65.00 – $80.00

Features

  • Advanced micro differential pressure sensor: This gauge is equipped with a highly accurate and stable sensor, ensuring precise measurements.
  • Multiple pressure units: It supports various pressure units such as mmbar, psi, pa, kpa, mmHg, mmH2O, and Torr, providing flexibility in measurement.
  • High/low pressure alarm: The DR-S220 features an alarm system that alerts users to high or low pressure conditions through sound and light signals.
  • Peak value holding: It can display and hold the peak value, as well as the maximum and minimum values recorded.
  • Multiple functions: The gauge offers additional functions including switch on/off, clear, peak record, and sound/light alarm control.
  • Long-lasting power: Powered by 2 AA batteries, the DR-S220 can operate for more than 12 months before requiring a battery replacement.
SKU: 10002022101001-2-1-2-1 Categories: , Tag:

Description

The DR-S220 differential pressure gauge utilizes an original advanced differential pressure sensor as its pressure-sensing element, combined with an ultra-low power digital conditioning circuit. As a result, it offers exceptional accuracy and long-term stability. The installation method for the DR-S220 is similar to that of a mechanical differential pressure gauge, making it convenient for engineers to install and debug on-site.

Manual>>

Technical Parameters

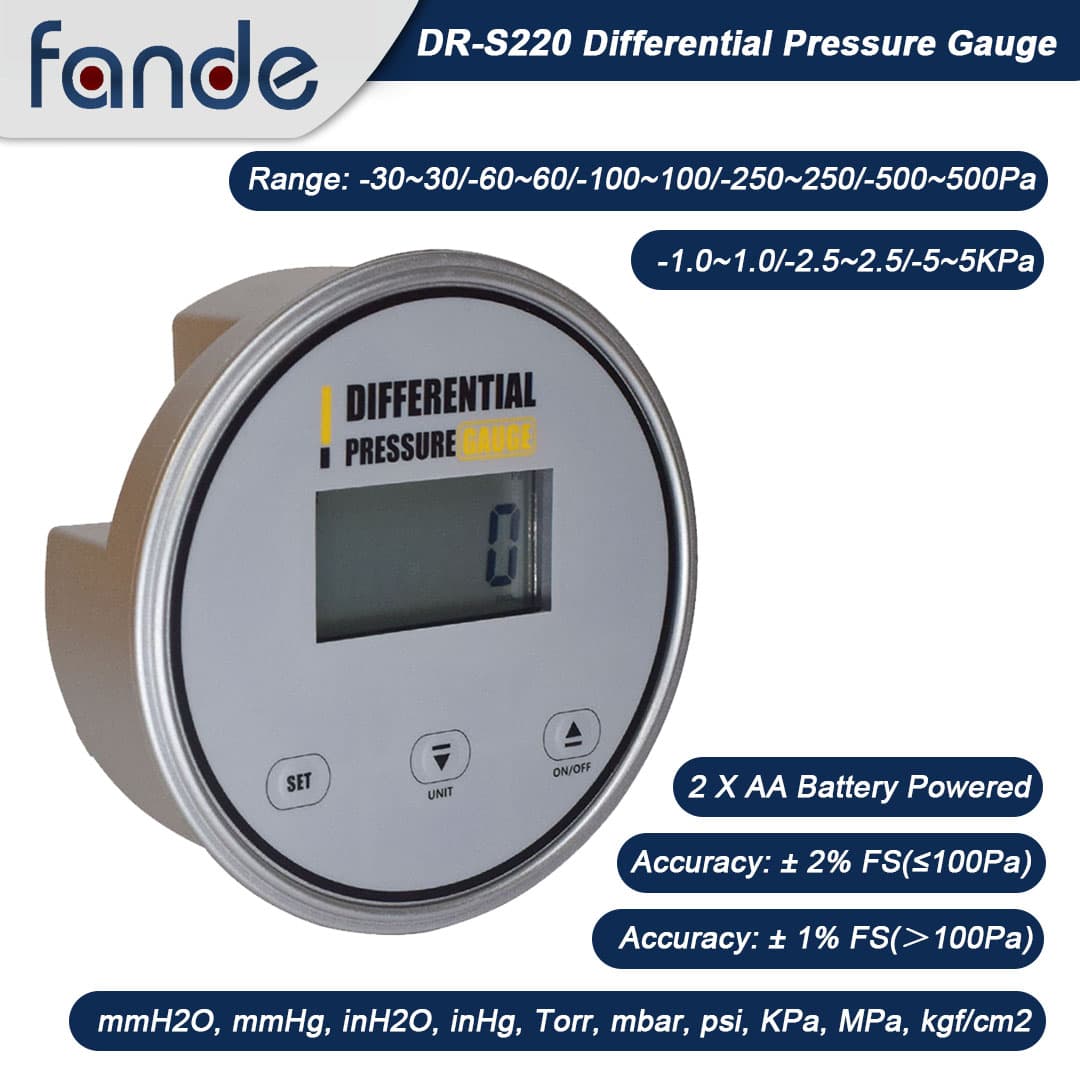

Measurement range-30~30/-60~60/-100~100/-250~250/-500~500Pa
-1.0~1.0/-2.5~2.5/-5~5KPa		Shell materialPA 66
Medium typeClean airDiameter113.5mm
Pressure typeDifferential pressureBacklight colorWhite
Resolution5 digitsPeak recordYes
Overload7kPa(range＜2kPa)
5*range(range≥2kPa)		Operation temp.- 20 ℃ ~ + 80℃
Pressure accuracy± 2% FS(≤100Pa) / ± 1% FS(＞100Pa)Compensation temp.0℃ ～ +40℃

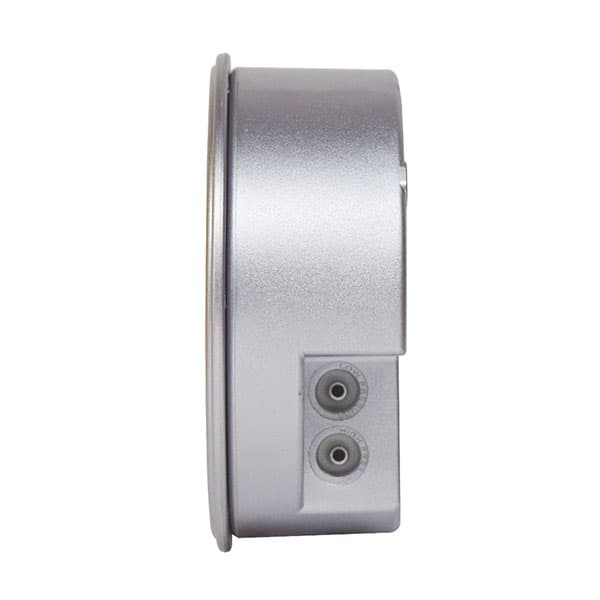

Stability±0.5 %FS (1 year)Connection3*5mm (ID: 3mm, OD: 5mm) air nozzle
Zero drift±0.02FS/℃ProtectionIP54
Working current＜0.2mA (no alarm)Power supply3 x AA/24VDC
Electrical protectionAnti-reverse protection
[crp]

Weight0.5 kg
Dimensions15 × 11 × 10 cm
Pressure Range

-30-30Pa, -60-60Pa, -125-125Pa, -250-250Pa, -500-500Pa, -1.0KPa-1.0KPa, -2.5KPa-2.5KPa, -5KPa-5KPa

Accuracy

1%FS, 2%FS
