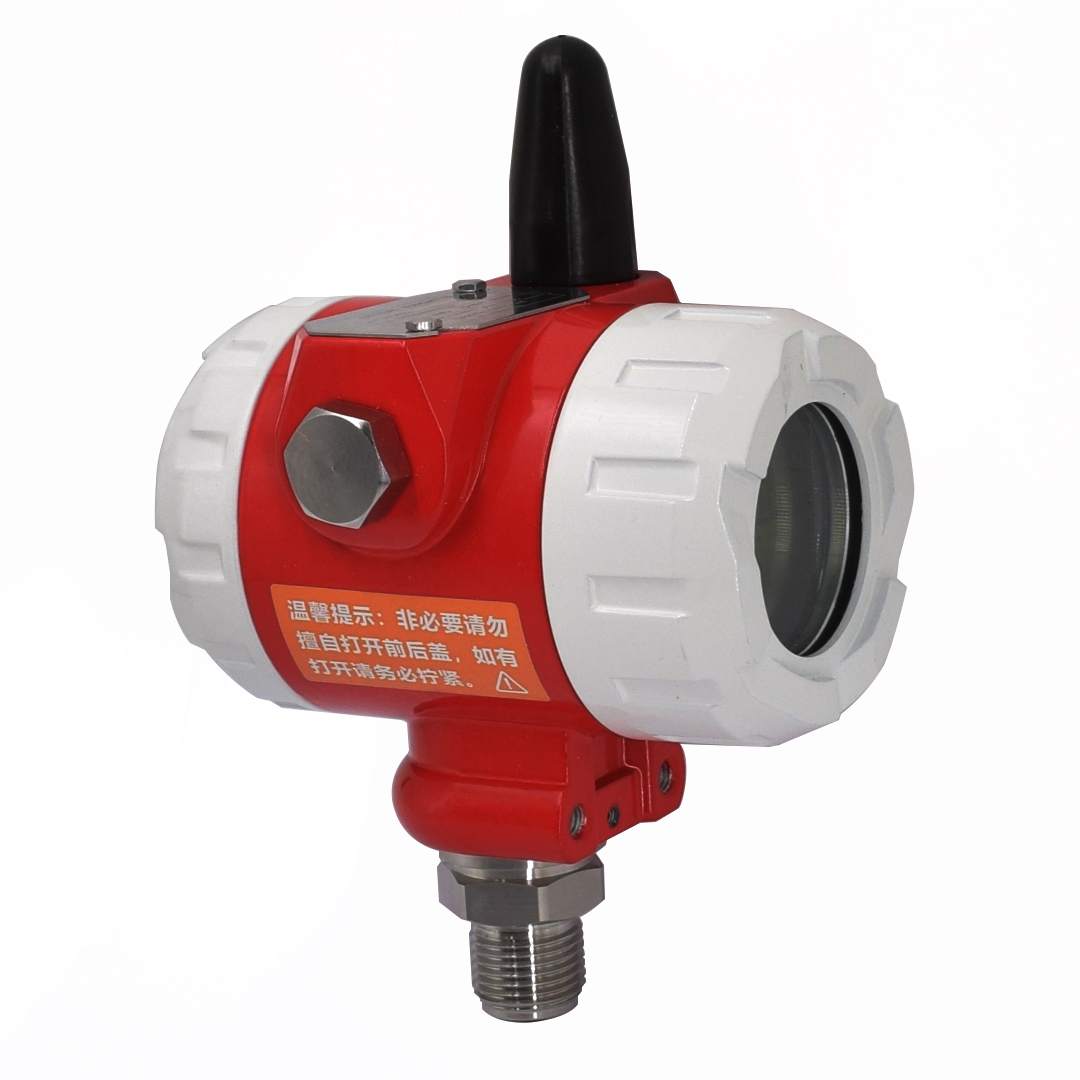

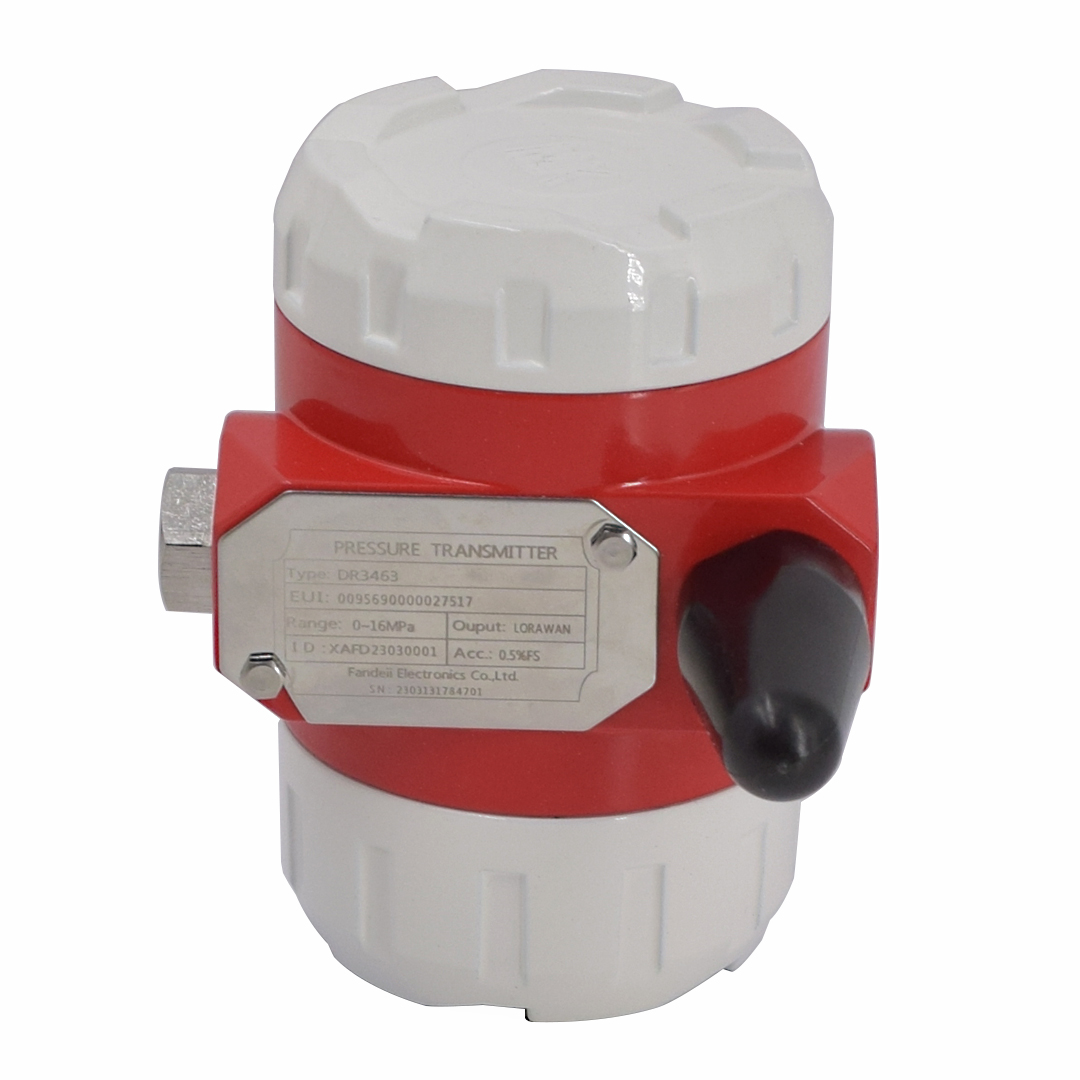

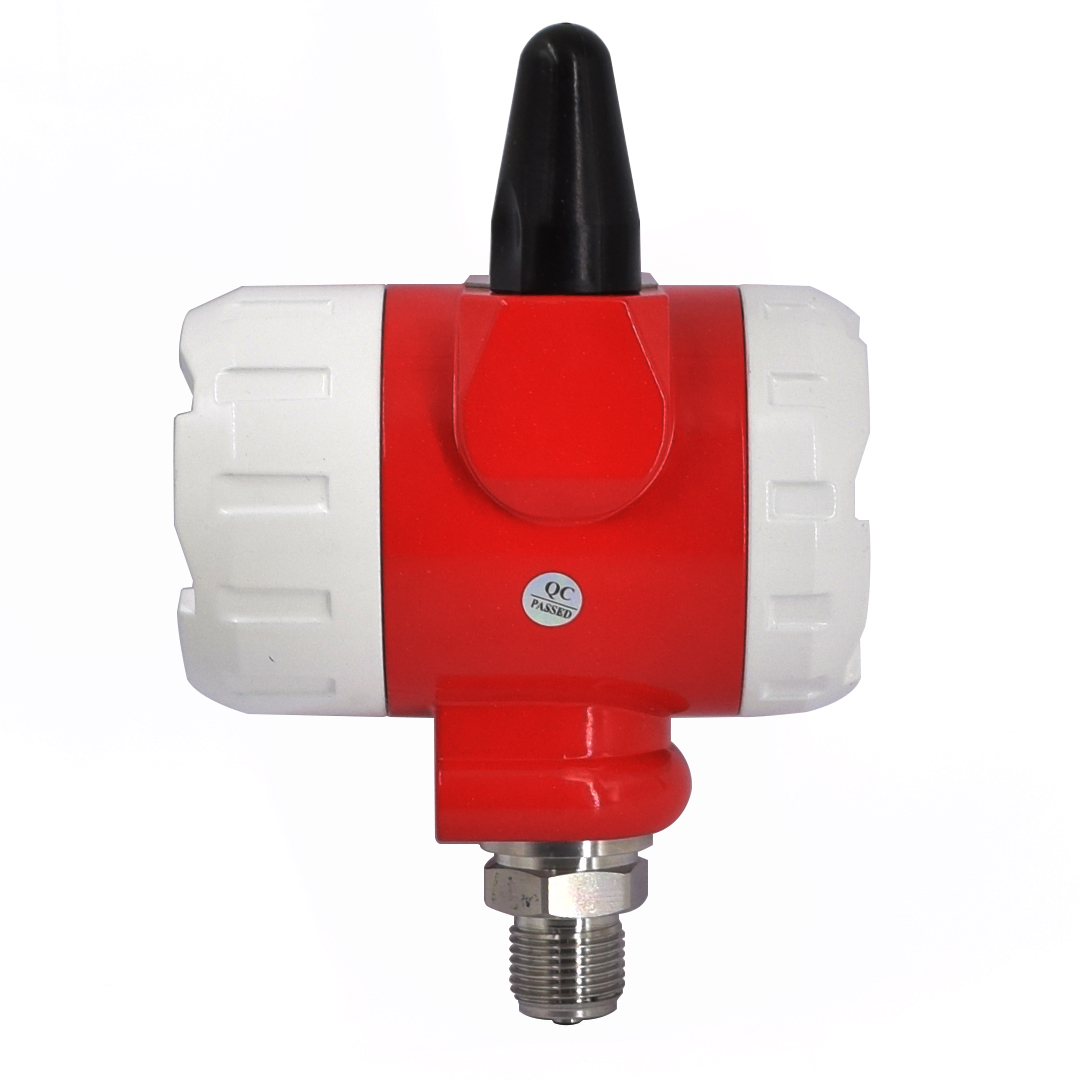

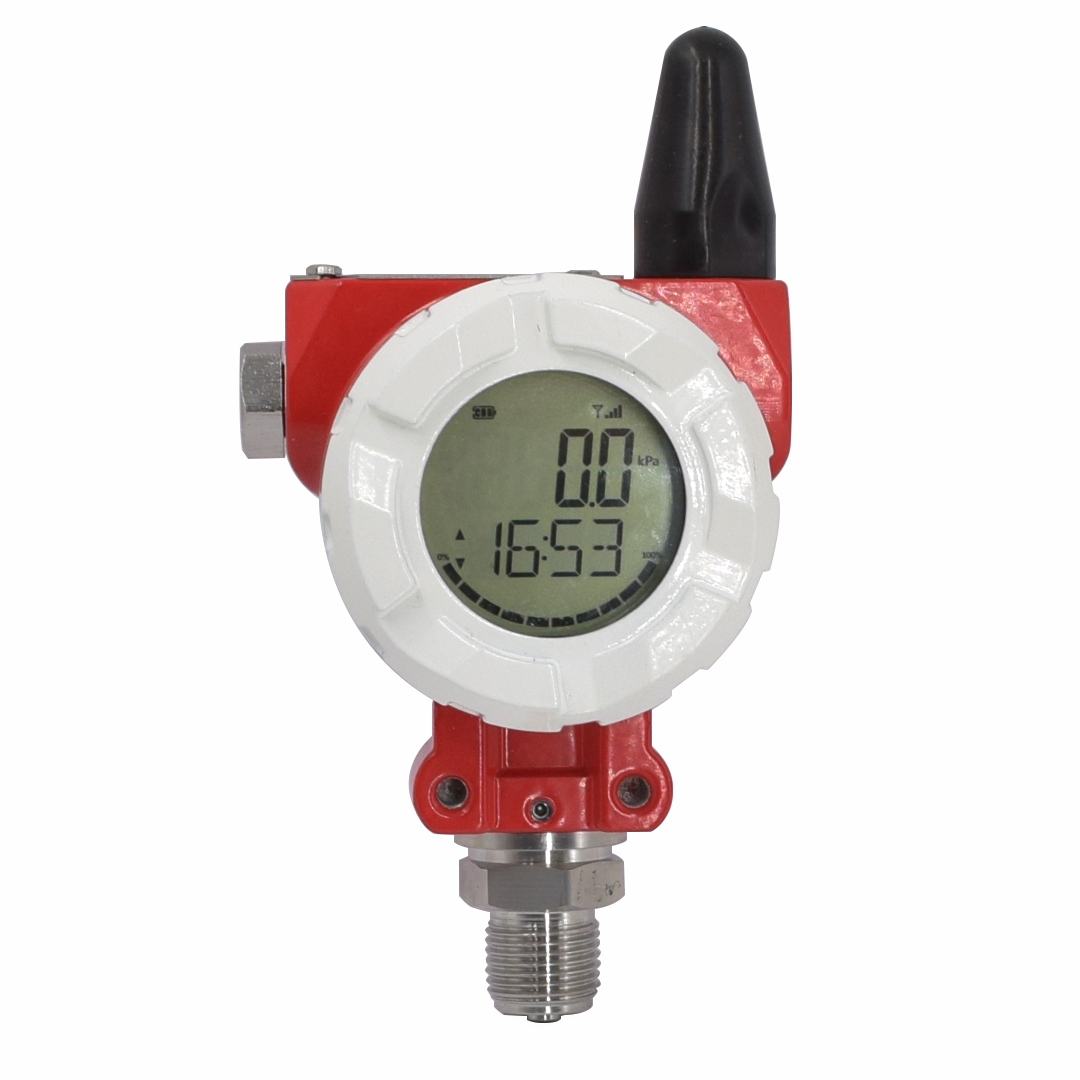

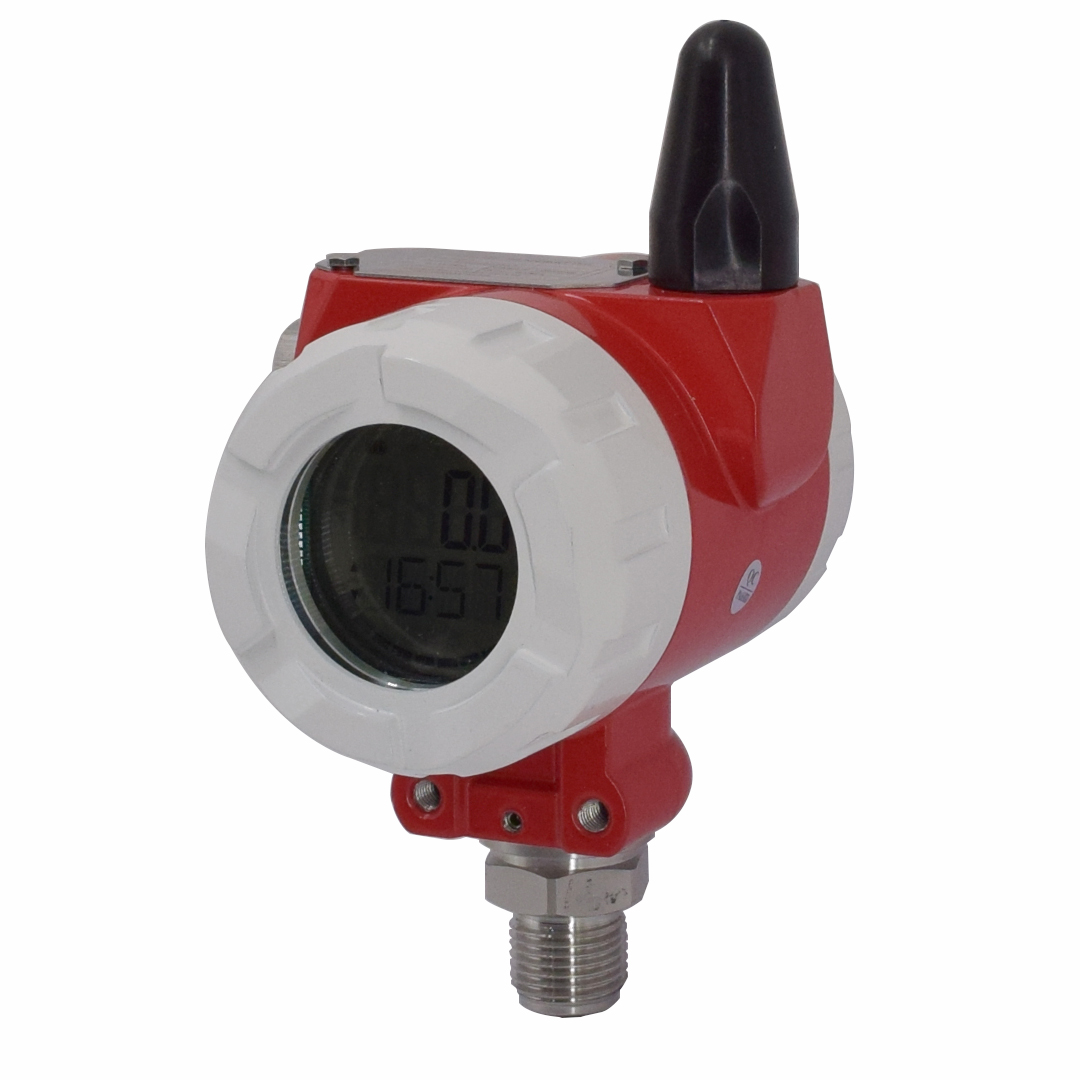

DR3463 lora wireless pressure sensor is an intelligent wireless pressure transmitter based on Lora/LoRaWAN protocol, which enable LoRaWAN transmission of measurement data. As a node, It can access to public or private LoRaWAN networks gateway. Because the features of long distance, low power and low cost connectivity, the wireless wireless pressure sensor is suitable for long-distance and long-term measurement of pressure. It also has a high-definition LCD display, users can easily read the measured values on the site.
Note: please confirm the frequency bands with us before placing an order, such as CN470, AU915, US915, EU868, etc.
Technical Parameter
| Power supply | DC3.6V battery or DC12V/24V Power supply | Emission current | <130mA |
| Range | -0.1~60MPa | Standby current | <20uA |
| Accuracy | 0.5 | Frequency | 470-510MHZ |
| Ambient Temperature | -25~70℃ | Protocal | LoRa/LoRaWAN |
| Protection | IP66 | Speed | 300bps |
| Explosion proof | Exib IIC T4 Gb | Communication distance | Radius 2km (typical) |
| Interface material | 316 stainless steel | Network access mode | ABP |
| Housing | Aluminium alloy | Transmit power | 100mW |
| Thread | M20*1.5, NPT1/2", NPT1/4", G1/4", G1/2" | Acceptance sensitivity | -140Bm |
