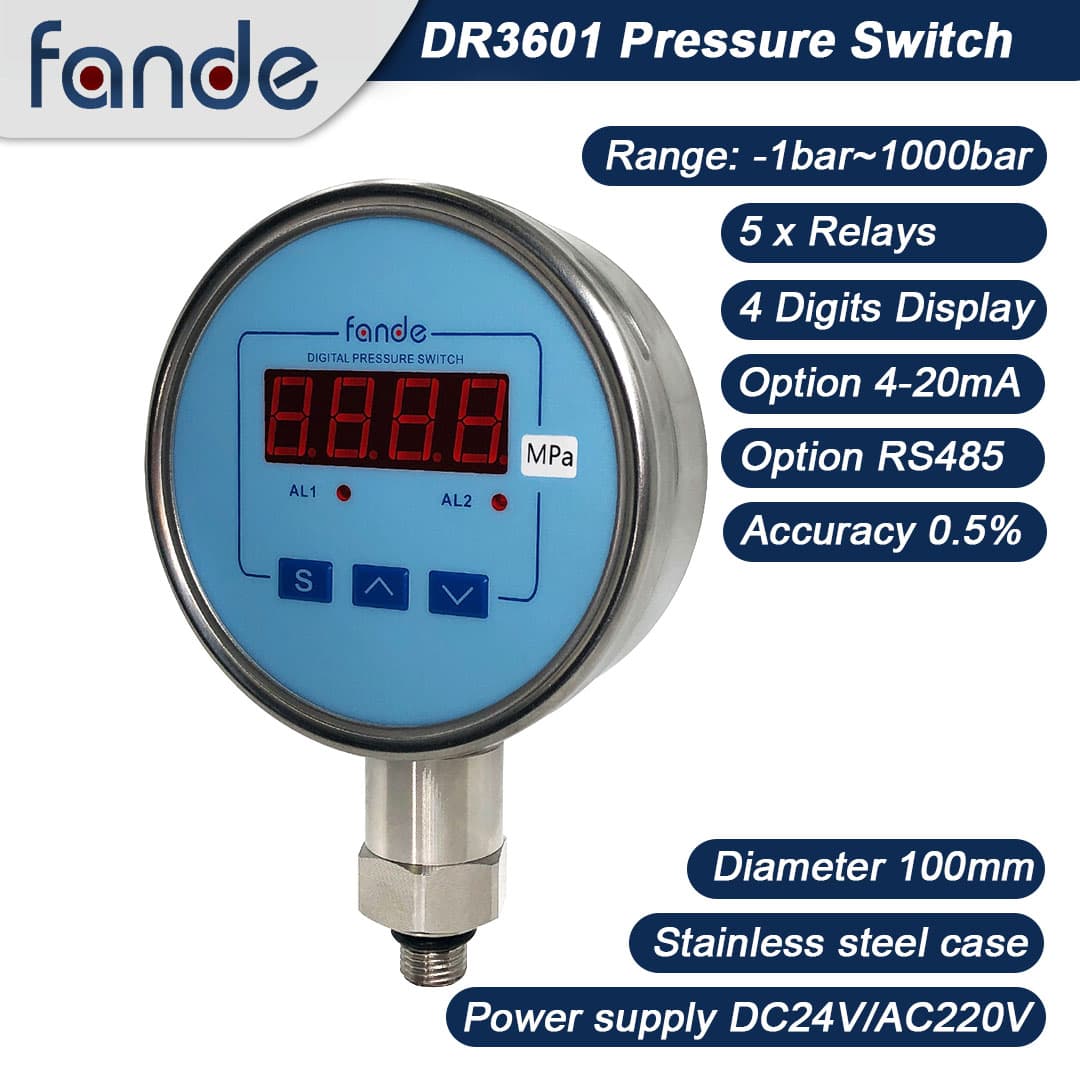

DR3601 Electronic Pressure Switch Output 5 Relays Accuracy 0.5%FS 4-digits Display

The DR3601 Electronic Pressure Switch represents the pinnacle of precision and reliability in pressure control technology. Crafted with meticulous attention to detail and engineered with cutting-edge components, this pressure switch offers unparalleled accuracy and performance in pressure monitoring and management applications.

Featuring a sleek and intuitive design, the DR3601 is equipped with a high-resolution 4-digit display, providing clear and precise readouts of pressure values. This user-friendly interface enhances usability and simplifies operation, ensuring seamless integration into any industrial or commercial environment.

With an impressive accuracy of 0.5%FS, the DR3601 delivers precise and reliable pressure measurements, enabling users to maintain optimal control over their systems and processes. Whether used in manufacturing facilities, hydraulic systems, or industrial machinery, this pressure switch provides the confidence and assurance of accurate pressure monitoring.

One of the standout features of the DR3601 is its versatility, boasting five relay outputs that allow for flexible and customizable control options. These relay outputs empower users to configure the pressure switch according to their specific requirements, facilitating seamless integration with external systems and devices.

Built to withstand the rigors of industrial environments, the DR3601 is constructed from high-quality materials and designed to meet stringent performance standards. Its robust construction ensures durability and reliability, even in the most demanding operating conditions.

Overall, the DR3601 Electronic Pressure Switch sets a new standard for precision, reliability, and versatility in pressure control technology. Whether you’re monitoring hydraulic systems, pneumatic equipment, or industrial processes, this pressure switch delivers unparalleled accuracy and performance, making it an indispensable tool for optimizing operations and ensuring efficiency.

Manual>>

Technical Parameter

Measurement range: 0MPa┅100MPa
Medium Type: Gas, water, oil, pure liquid
Pressure type: gauge pressure
Display: 0.56″ LED, -1999~9999
Power supply: 220VAC/24VDC
Output: 5 Relay/RS485
Overload: 200% full Measurement range
Pressure accuracy: ± 0.5% FS (standard)
Long term stability: 0.1% FS / year
Material: SUS304 stainless steel
Sealing ring: Viton
Pressure interface: NPT1/2, NPT1/4, G1/2, G1/4, M20 * 1.5/ external thread
Ambient temperature: -20 ℃ ~ + 70 ℃
Protection grade: IP65
