Description

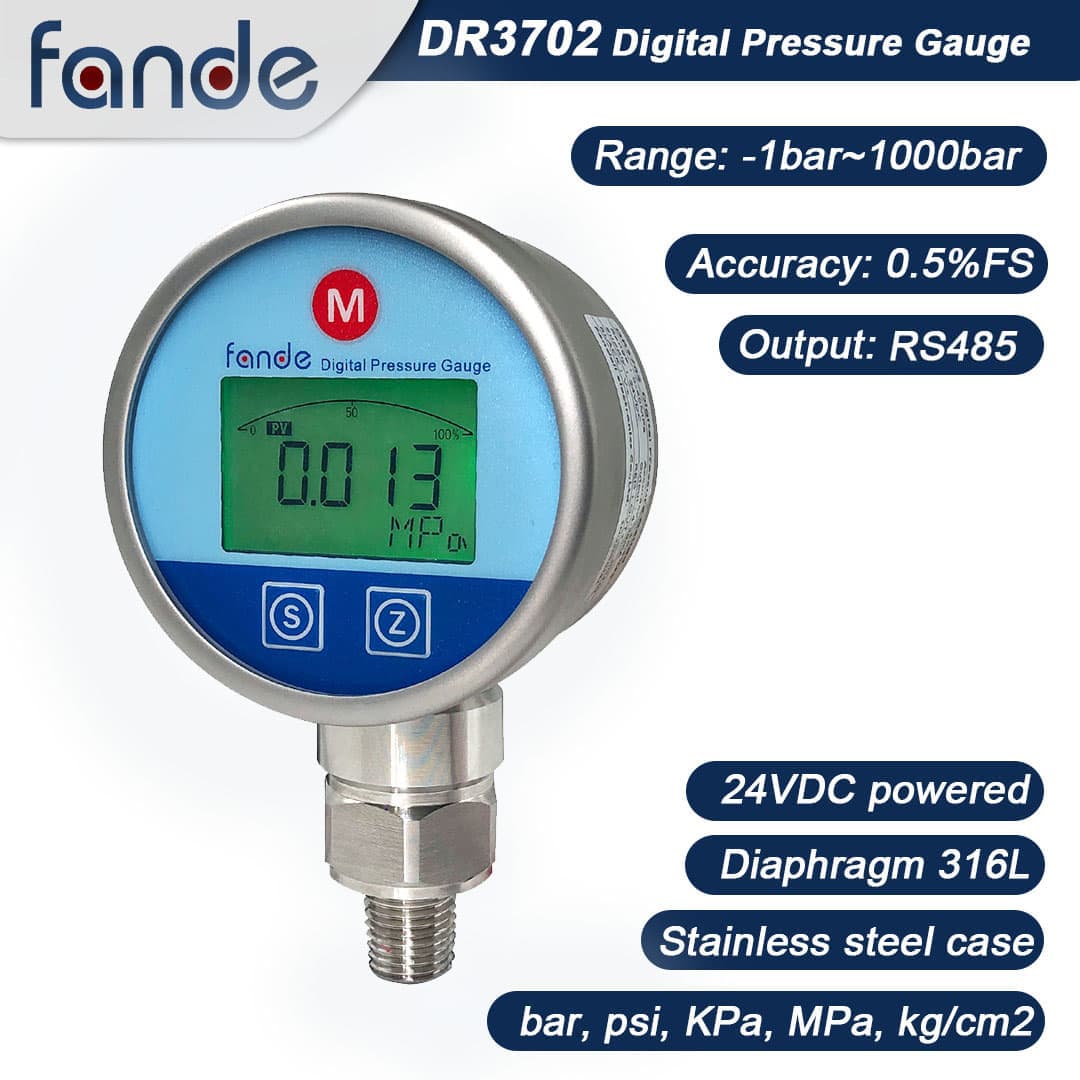

The DR3702 Digital Pressure Gauge with Output RS485 is a cutting-edge instrument engineered for precise pressure measurement and data transmission in industrial applications. With an accuracy of 0.5%, this gauge delivers highly reliable readings, ensuring optimal performance and safety in various pressure monitoring scenarios.
Equipped with RS485 output capability, the DR3702 facilitates seamless integration with digital control systems, allowing for real-time data acquisition and analysis. This feature enables users to monitor pressure levels remotely and make informed decisions based on accurate and up-to-date information, enhancing operational efficiency and control.
Powered by a DC24V power supply, this digital pressure gauge ensures stable and consistent operation, even in demanding industrial environments. Its robust construction and advanced electronics make it suitable for a wide range of applications, including hydraulic systems, pneumatic systems, and process control systems.
The clear and intuitive digital display provides instant access to pressure readings, allowing operators to quickly assess system performance and respond to any deviations or anomalies. Additionally, the gauge may offer customizable features such as units of measurement, pressure ranges, and alarm thresholds, providing flexibility to tailor its functionality to specific application requirements.
Whether used in manufacturing plants, refineries, or utility facilities, the DR3702 Digital Pressure Gauge with Output RS485 delivers unmatched accuracy, reliability, and versatility for precise pressure monitoring and control. With its advanced features and rugged design, it is the ideal solution for industries where precision and performance are paramount.
Technical Parameters
| Measurement range | -1bar…0bar~0.1bar…1000bar | Sealing ring | Viton |
| Medium Type | used for non corrosive fluid to 316L stainless steel and fluororubber | Diameter | 70mm |
| Pressure type | gauge, absolute or sealed gauge pressure | Housing thickness | 1.5mm |
| Display range | 4-digit or 5-digit | Compensated Temp. | 0 ℃ ~ + 50 ℃ |
| Over pressure | 200%FS or 1100bar（Take the minimum value） | Working temp. | - 20 ℃ ~ + 70 ℃ |
| Total accuracy | ± 0.25% FS / ± 0.5% FS | Storage Temp. | -30℃～+70℃ |
| Stability | ±0.20 %FS(1 year) | Pressure interface | NPT1/2 NPT1/4 G1/2 G1/4 M20 * 1.5 |
| Output | 4mA～20mA (two wires) | Protection level | IP65 |
| Housing | stainless steel 304 | Power supply | 12~28VDC |
| Diaphragm | stainless steel 316L | Cable | 1.5m |
