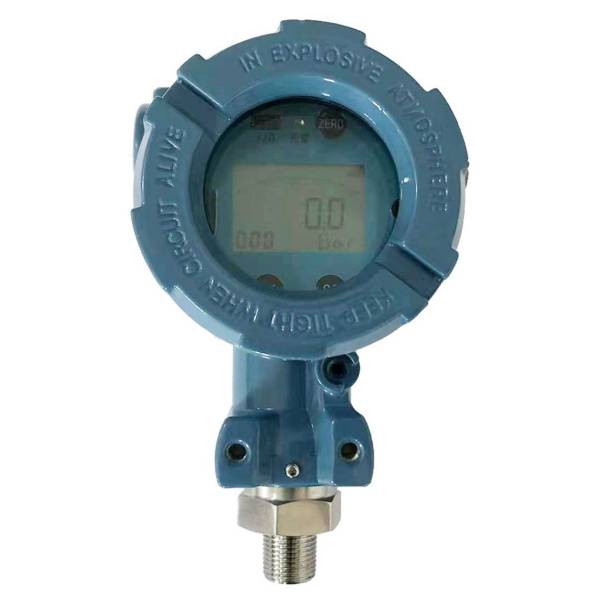

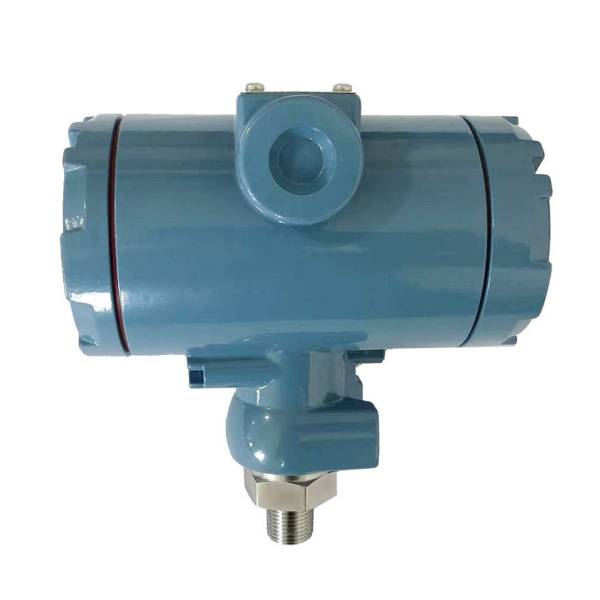

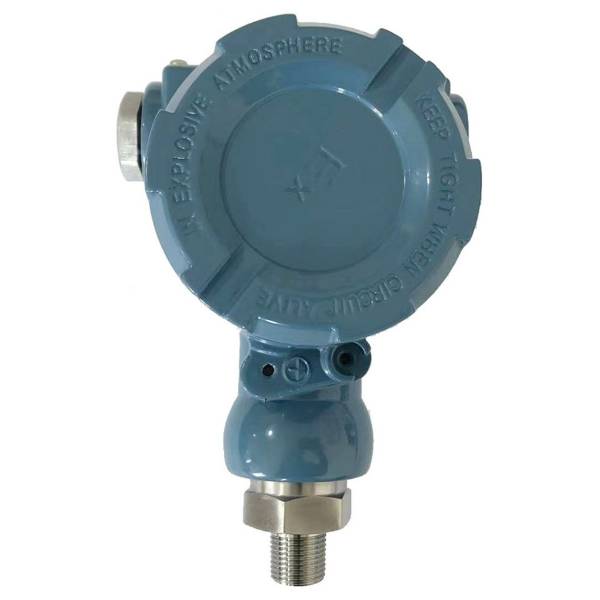

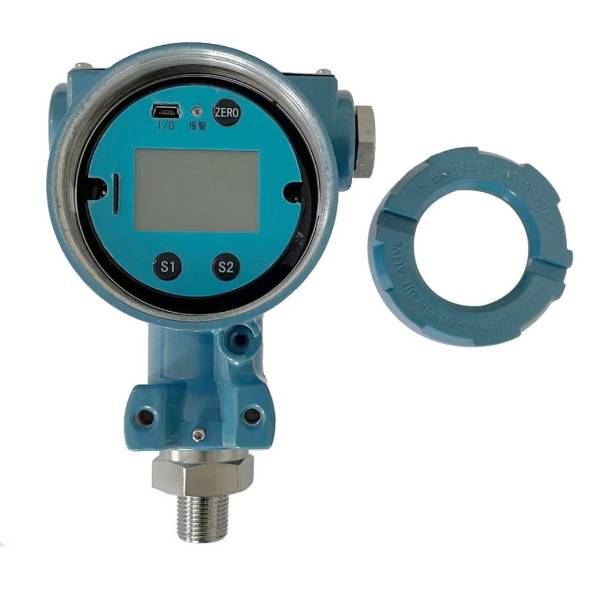

DR3704 Pressure Data Logger Recorder 0-1000 bar Accuracy 0.5%FS for Gas Air Water

Description

The DR3704 Digital Pressure Data Logger from Fandesensor revolutionizes pressure monitoring with its innovative data-logging capability. Featuring an SD card for seamless data storage, users can effortlessly transfer recorded information to a PC or laptop in CSV format, complete with precise time and date stamps. This ensures accurate tracking of pressure changes, making it an essential tool for professionals who require reliable and efficient data analysis. Elevate your monitoring experience with the DR3704!

Manual>>

Technical Parameters

Measurement range	-1bar-1000bar	Diaphragm	stainless steel 316L
Medium type	Gas, water, oil, pure liquid	O-Ring	Viton
Pressure type	gauge, absolute or sealed gauge	Support SD card	32G mini SD card
Display digits	-9999~9999 LCD backlight display	Recording times	Limited by SD card
Overload	200%FS	Working temp.	-40~70℃
Pressure accuracy	± 0.1% FS / ± 0.2% FS / ± 0.5% FS (standard)	Explosion-Proof	Exib IIC T4 Gb
Stability	±0.20 %FS (1 year)	Pressure interface	NPT1/2 NPT1/4 G1/2 G1/4 M20 * 1.5
Standby current	<30uA	Protection level	IP66
Recording current	<20mA	Power supply	3.6V Battery
Housing	Aluminium alloy
