Description

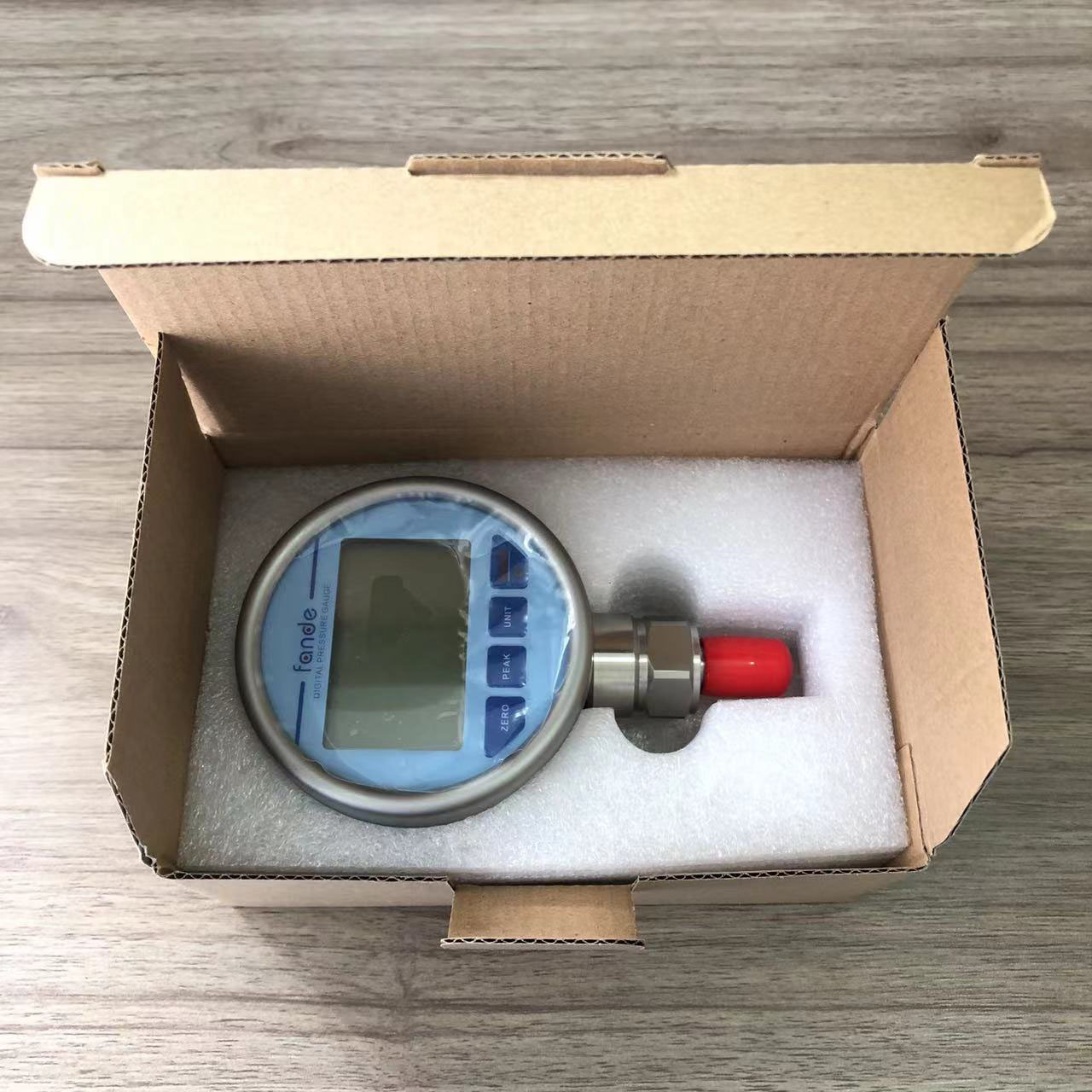

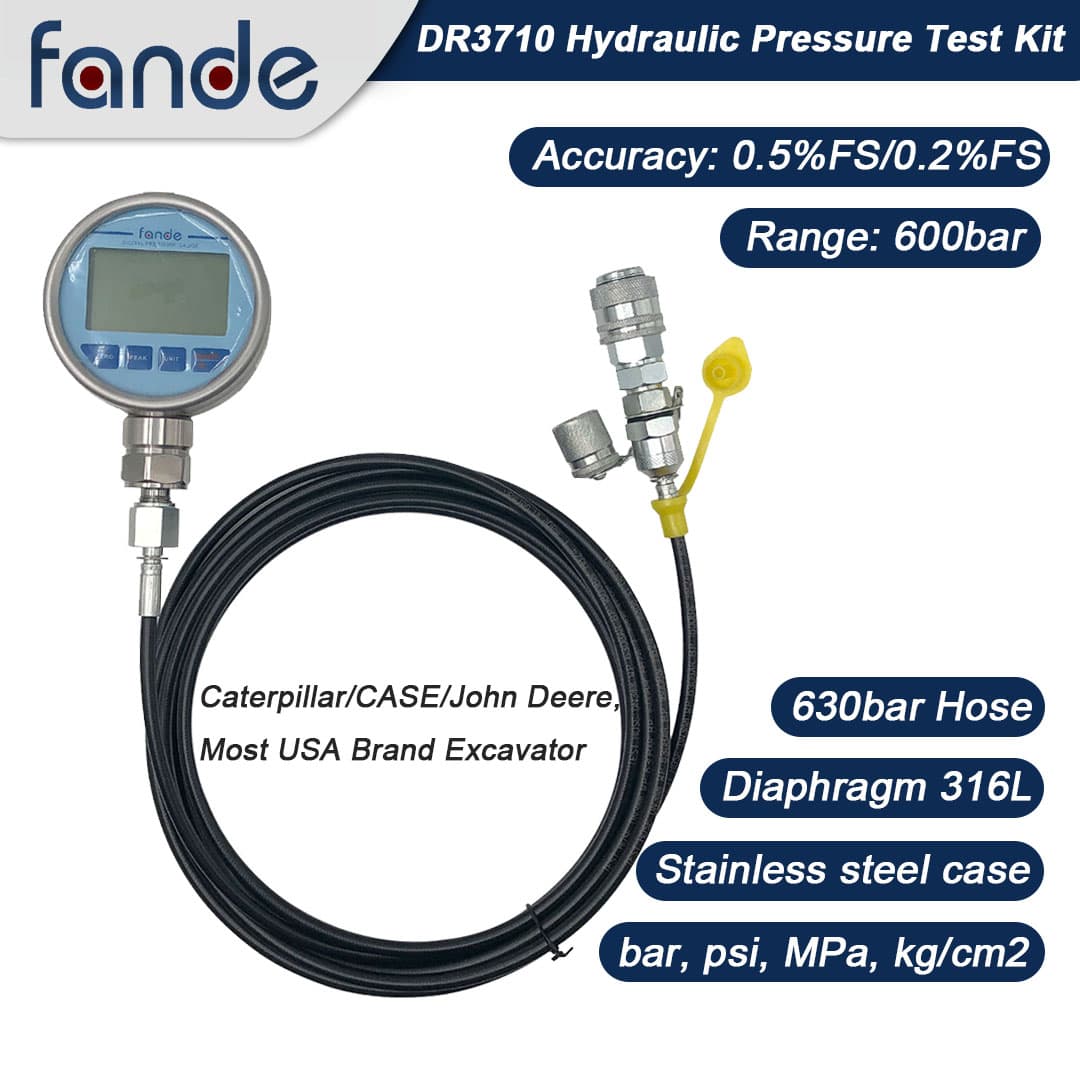

The hydraulic pressure tester kit include one DR3710 pressure gauge, hydraulic hose and a quick release coupling connection, the range of the digital pressure gauge is 600bar, the rugged stainless-steel case and AAA battery powered. The Min/Max peak values since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. The bargraph display function integrated into the display to gives a visual indication of the full range.
Hydraulic Pressure Tester Coupling Kit for PD Series Coupler/Caterpillar/CASE/John Deere, USA Most Brand Excavator Construction Machinery
Technical Parameters
| Measurement range | -1bar…0bar~0.1bar…2500bar | Diaphragm | stainless steel 316L |
| Medium type | Gas, water, oil, pure liquid | O-Ring | Viton |
| Pressure type | gauge, absolute or sealed gauge | Diameter | 80mm |
| Display digits | -19999~19999 | Housing thickness | 1.5mm |
| Overload | 200%FS | Compensated temp. | 0 ℃ ~ + 70 ℃ |
| Pressure accuracy | ± 0.1% FS / ± 0.2% FS / ± 0.5% FS | Working temp. | - 20 ℃ ~ + 60 ℃ |
| Tempe. accuracy | ± 2 ℃ | Storage temp. | -30℃～+70℃ |
| Stability | ±0.20 %FS (1 year) | Pressure interface | NPT1/2 NPT1/4 G1/2 G1/4 M20 * 1.5 |
| Response frequency | 3.2kHz | Protection level | IP65 |
| Housing | stainless steel 304 | Power supply | 2 x 1.5 V round cell AAA |
