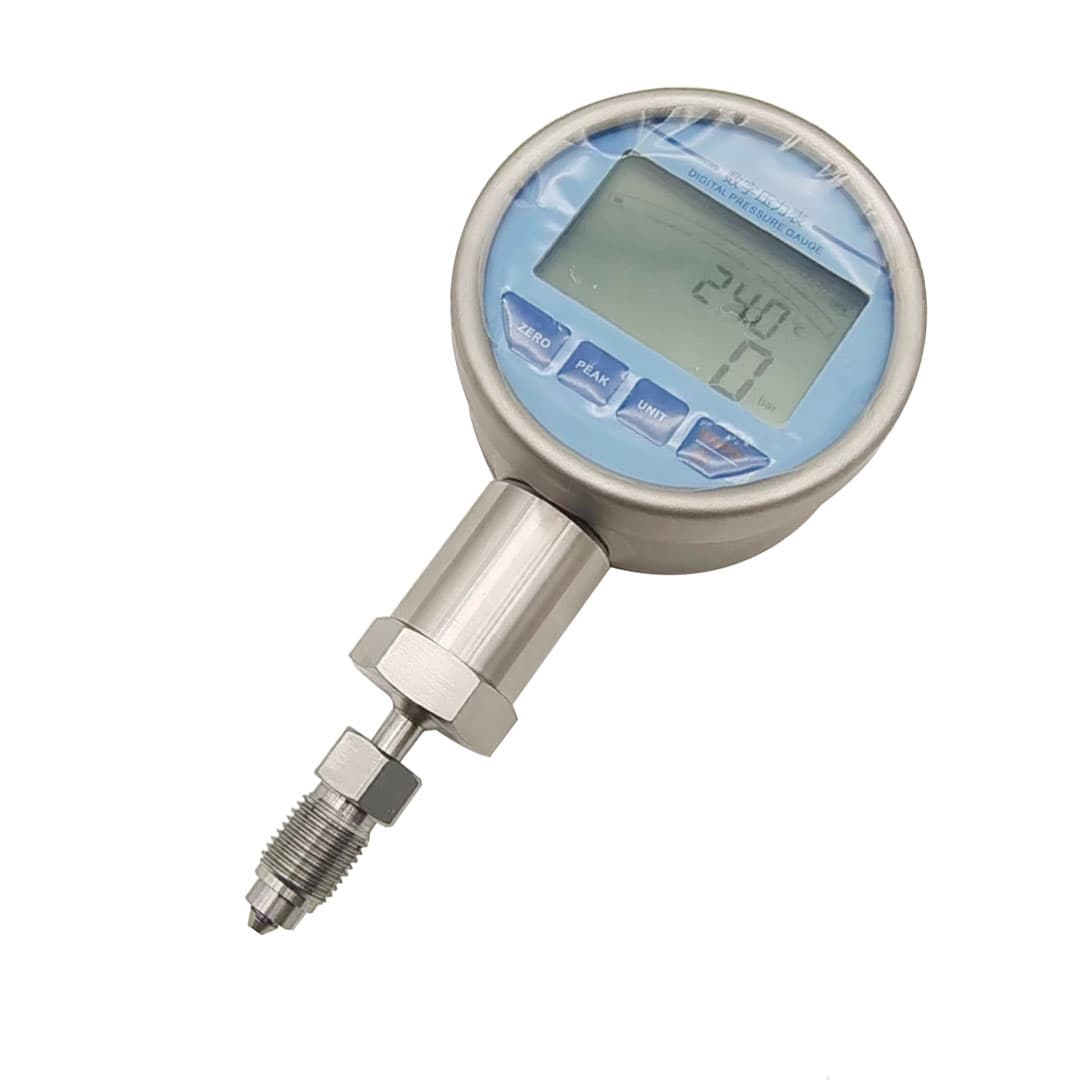

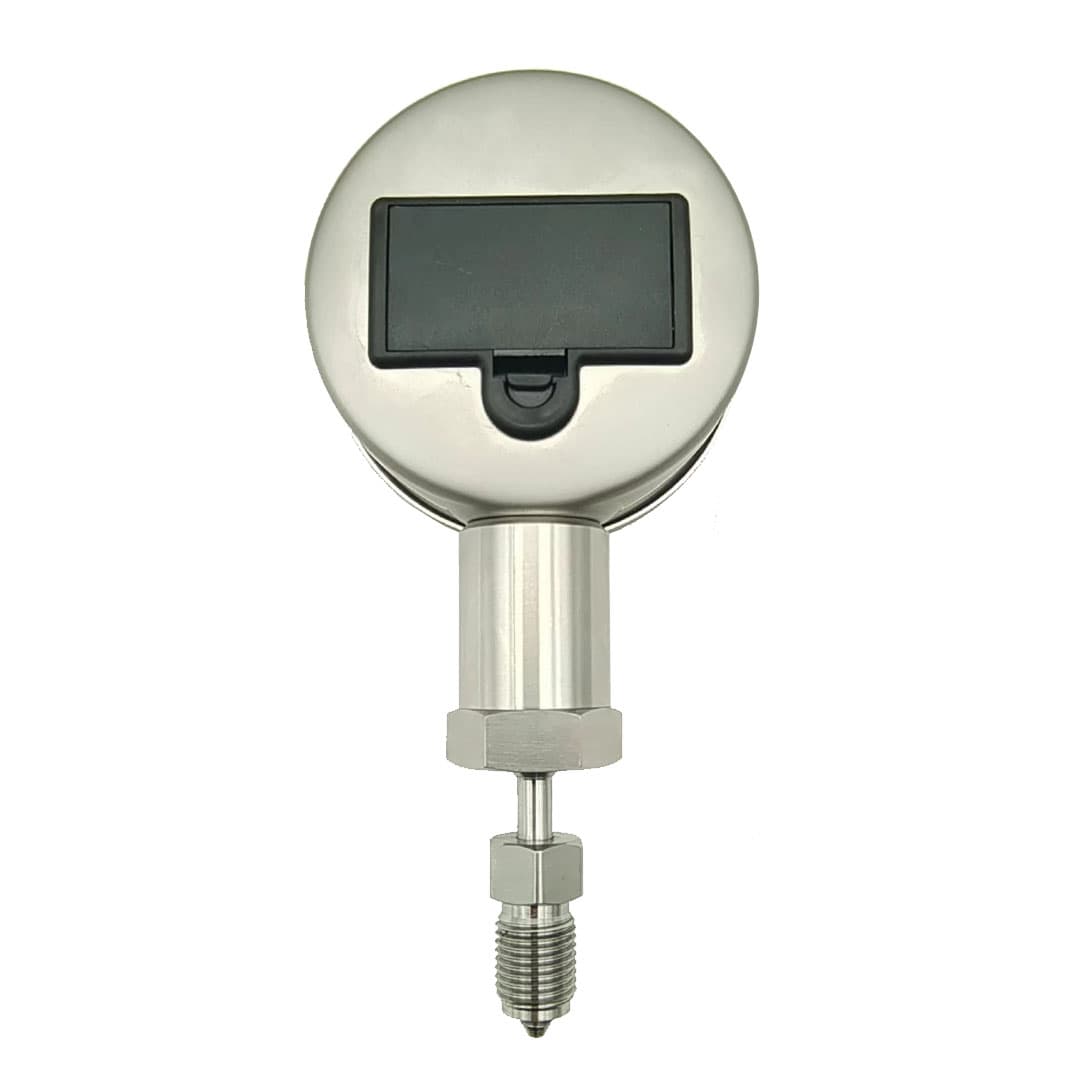

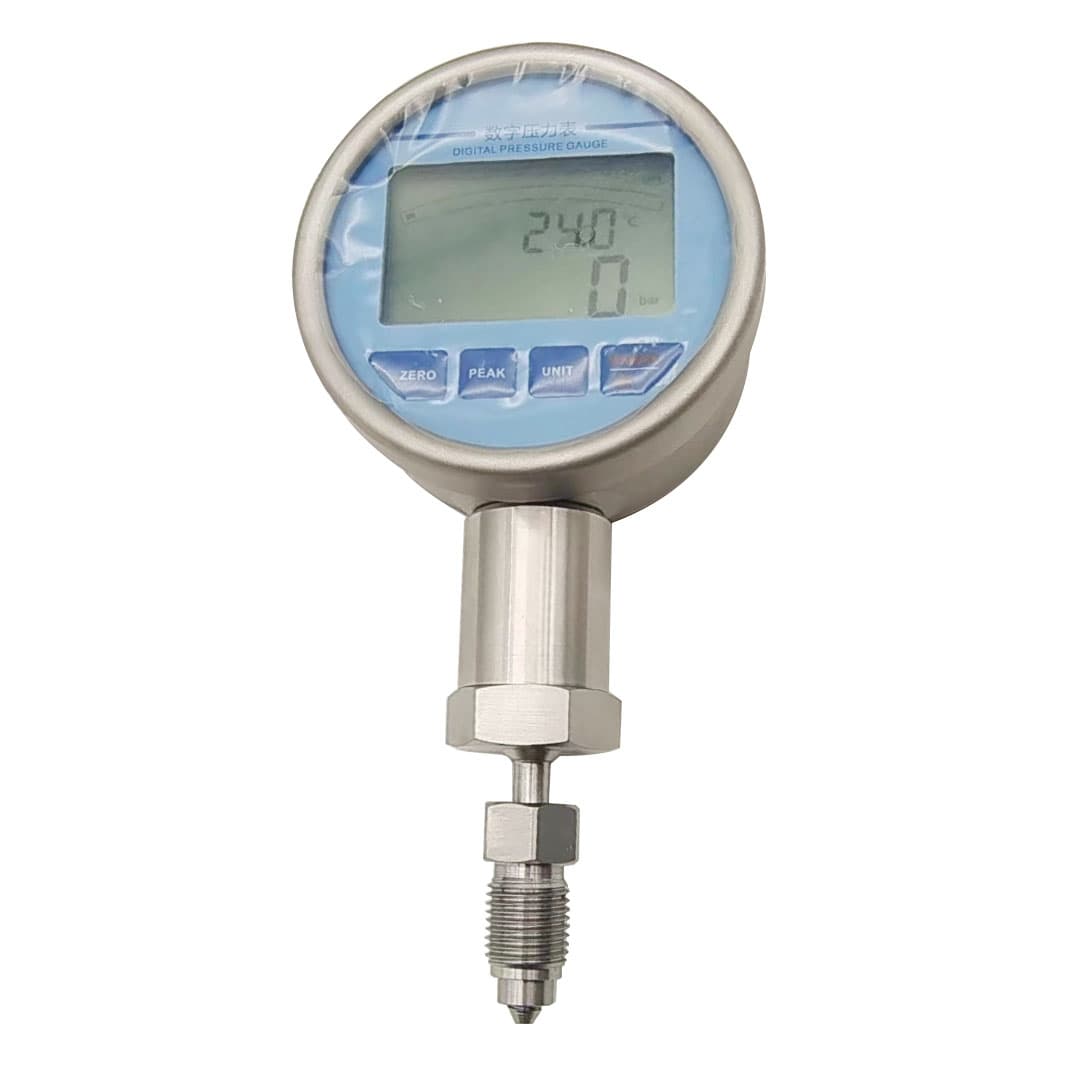

DR3710 9/16″ UNF High Pressure Gauge 1600 bar 2000 bar 2500 bar Stainless Steel

Description

The DR3710 UNF High Pressure Gauge is a precision instrument designed to accurately measure pressure levels in high-pressure systems. Engineered with state-of-the-art technology, this gauge is built to withstand extreme conditions and deliver reliable performance in demanding environments.

Featuring a UNF (Unified National Fine) threaded connection, the DR3710 is compatible with a wide range of high-pressure systems, making it versatile for various industrial applications. Its robust construction ensures durability and longevity, even in harsh operating conditions.

With its clear and easy-to-read display, users can quickly and accurately monitor pressure levels, enabling efficient operation and maintenance of high-pressure systems. Whether used in hydraulic systems, pneumatic systems, or other industrial applications, the DR3710 UNF High Pressure Gauge provides precise measurements for optimal performance and safety.

Additionally, this gauge may offer features such as calibration options, protective casing, and compatibility with different pressure units, further enhancing its usability and versatility in various industrial settings. Trustworthy and dependable, the DR3710 UNF High Pressure Gauge is a vital tool for ensuring the smooth and safe operation of high-pressure systems.

Manual>>

Technical Parameters

Measurement range	-1bar…0bar~0.1bar…2500bar	Diaphragm	stainless steel 316L
Medium type	Gas, water, oil, pure liquid	O-Ring	Viton
Pressure type	gauge, absolute or sealed gauge	Diameter	80mm
Display digits	-19999~19999	Housing thickness	1.5mm
Overload	200%FS	Compensated temp.	0 ℃ ~ + 70 ℃
Pressure accuracy	± 0.1% FS / ± 0.2% FS / ± 0.5% FS	Working temp.	- 20 ℃ ~ + 60 ℃
Tempe. accuracy	± 2 ℃	Storage temp.	-30℃～+70℃
Stability	±0.20 %FS (1 year)	Pressure interface	NPT1/2 NPT1/4 G1/2 G1/4 M20 * 1.5
Response frequency	3.2kHz	Protection level	IP65
Housing	stainless steel 304	Power supply	2 x 1.5 V round cell AAA
