by using the diode temperature sensing P-N junction, the characteristics of forward voltage reduction varying with temperature, the temperature and humidity sensor transmitter can obtain real-time and accurate temperature measurement. Humidity is measured by humidity sensitive capacitance, which changes with the change of humidity and capacitance value. The temperature and humidity sensor are compensated for each other, and then amplified into standard digital or analog signals of relative humidity and temperature through the amplification circuit.
Technical Parameter
| Temperature Range | -40℃~125℃; | Response Speed | 15s(without filter), 55s(with filter) |
| Humidity Range | 0-100%RH | Response Frequency | ≤2Hz |
| Medium | Gas(Compatible with contact materials) | Operating Temp. | -40···85℃ |
| Humidity Accuracy | ±3%RH(10-90%RH, 25℃), ±3~±5%RH(0···10% / 90···100%); | Operating Humidity | 0%～95%RH |
| Temperature Accuracy | ±0.4ºC: 0···60ºC; ±0.4~±0.8ºC: -20···0ºC / 60···80ºC; ±0.8~±1.2ºC: -40···-20ºC / 80···125ºC; | Load | Voltage type: ≥ 100k Ω Current type: ≤ 200 Ω |

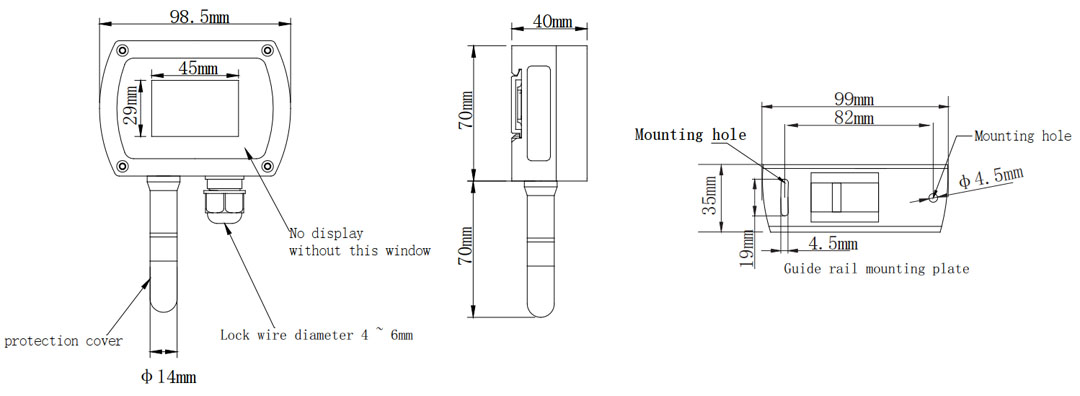

| Stability | ± 1% RH FS / year ± 0.2 ℃ / year | Size | 140×89.5×40mm |
| Output | 4-20mA, 0-10VDC | Protection level | IP65 |
| Communication | RS485 ,Modbus RTU protocol | Power supply | 12V~24VDC, 24VDC |
