Description

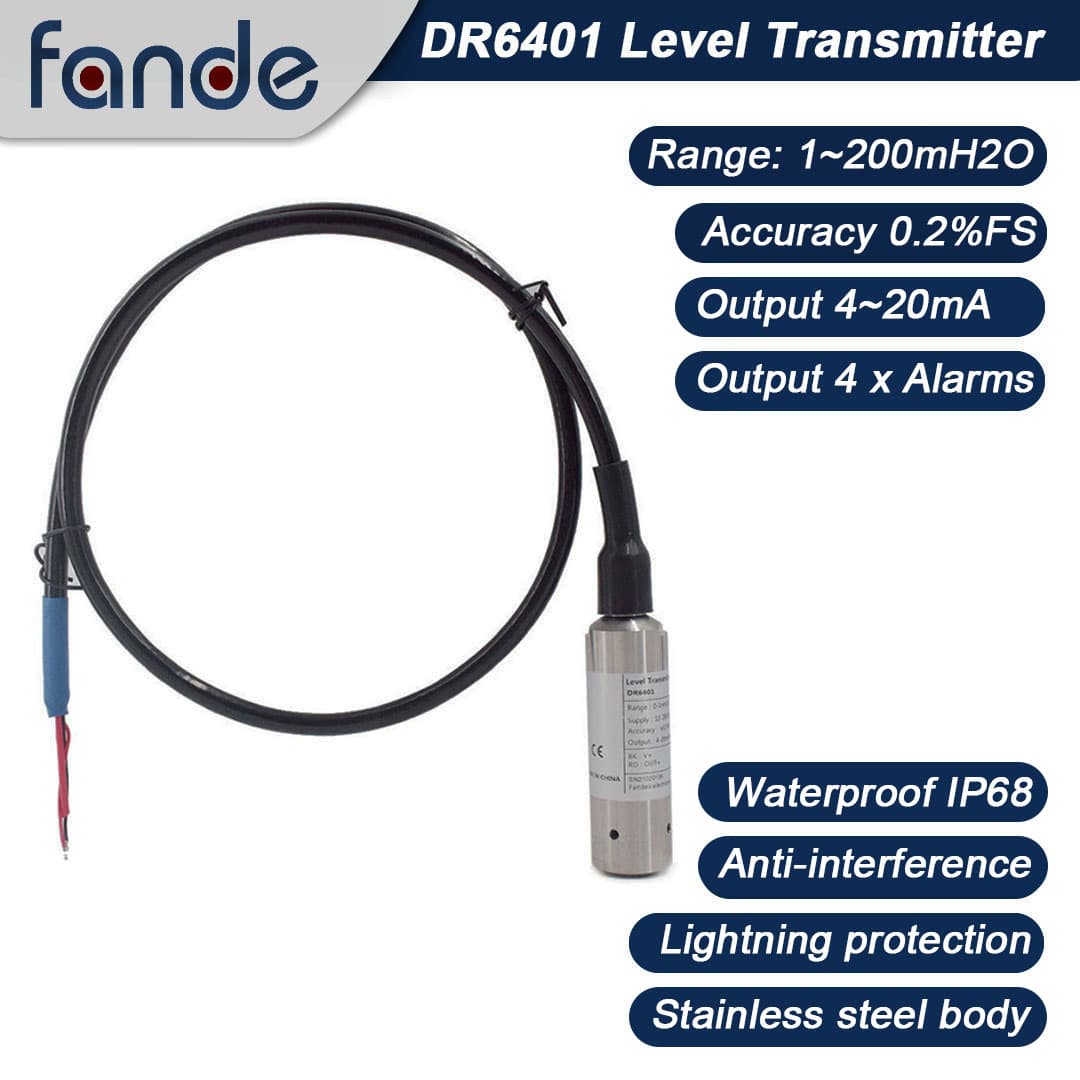

Introducing the DR6401 General Water Level Sensors, a high-performance solution tailored for precise water level monitoring in various industrial and commercial applications. With its robust construction, advanced features, and exceptional accuracy, the DR6401 ensures reliable and accurate measurements even in challenging environments.

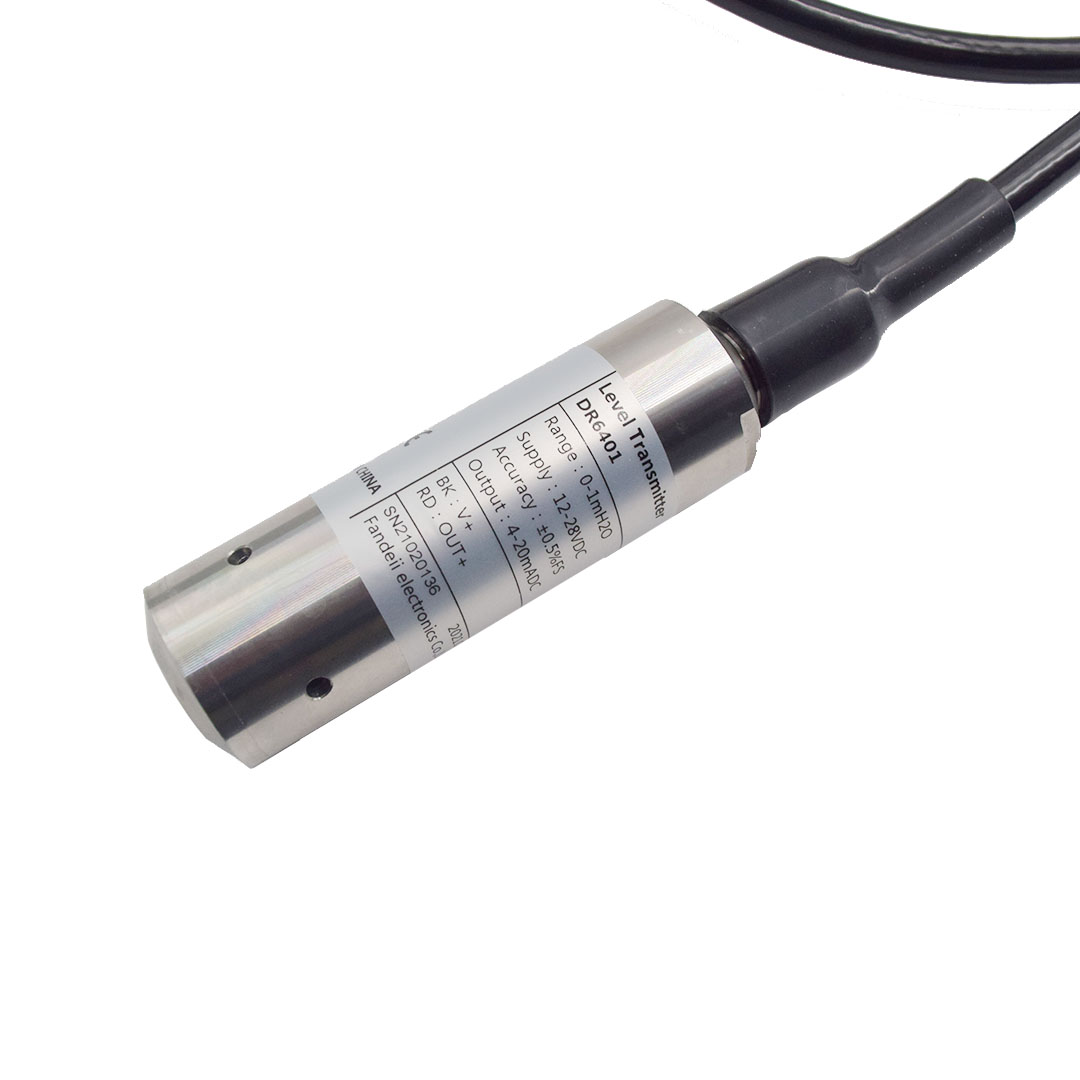

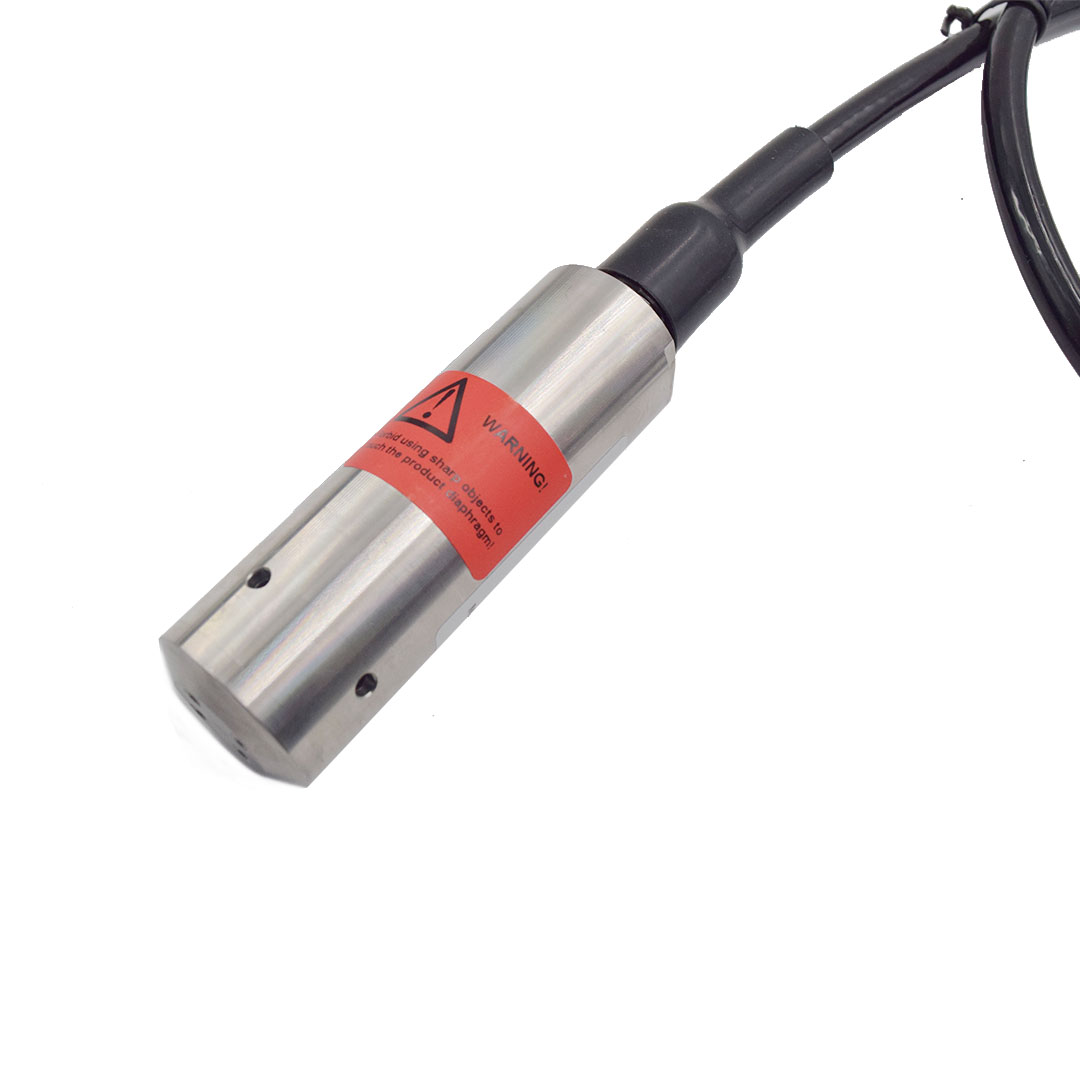

Crafted with a stainless steel body, the DR6401 is built to withstand harsh conditions and resist corrosion, ensuring durability and longevity in demanding applications. Its rugged design makes it suitable for use in a wide range of industries, including wastewater treatment plants, industrial tanks, and agricultural reservoirs.
Equipped with advanced sensing technology, the DR6401 delivers accurate and reliable measurements with an impressive accuracy of either 0.5% or 0.2%, depending on the specific model. This level of precision provides users with confidence in their monitoring systems, allowing for precise control over water levels and preventing overflow or depletion issues.
The DR6401 offers flexible output signal options, including a 4-20mA current loop or 0-5V voltage output, enabling seamless integration with a variety of control systems and data acquisition devices. This versatility allows users to customize their monitoring solutions according to their specific requirements, enhancing overall efficiency and productivity.
With an IP68 waterproof rating, the DR6401 is designed to withstand immersion in water up to a certain depth, ensuring reliable operation even in wet or submerged environments. This level of protection makes it suitable for applications where water ingress is a concern, providing peace of mind and ensuring continuous performance.
Overall, the DR6401 General Water Level Sensors combines robust construction, advanced features, and exceptional accuracy to deliver reliable and precise water level monitoring in a wide range of applications. Its stainless steel body, flexible output options, and waterproof design make it the ideal choice for optimizing water management systems and ensuring operational efficiency.
Technical Parameter
| Range | 1,2,5,10,20,50,100,200 mH2O | Zero thermal drift | ≤±0.03%FS/℃ (≤10mH20); ≤±0.02%FS/℃ (>10mH20) |
| Over pressure | 200%FS | Span thermal drift | ≤±0.03%FS/℃ (≤10mH20); ≤±0.02%FS/℃ (>10mH20) |
| Accuracy | ± 0.25% FS / ± 0.5% FS | Compensated Temp. | -10℃ ~ +80℃ |
| Stability | ±0.2%FS(1 year) | Working temp. | -10℃ ~ +70℃ |
| Output | 4mA~20mA DC(2-wire); 0/1V~5/10V DC(3-wire); | Storage Temp. | -30℃～+70℃ |
| Load | ≤(U-11)/0.02Ω(2-wire); ≥10k(3-wire); | Insulation resistance | 500MΩ@500V DC |
| Housing | stainless steel 304 | Protection level | IP68 |

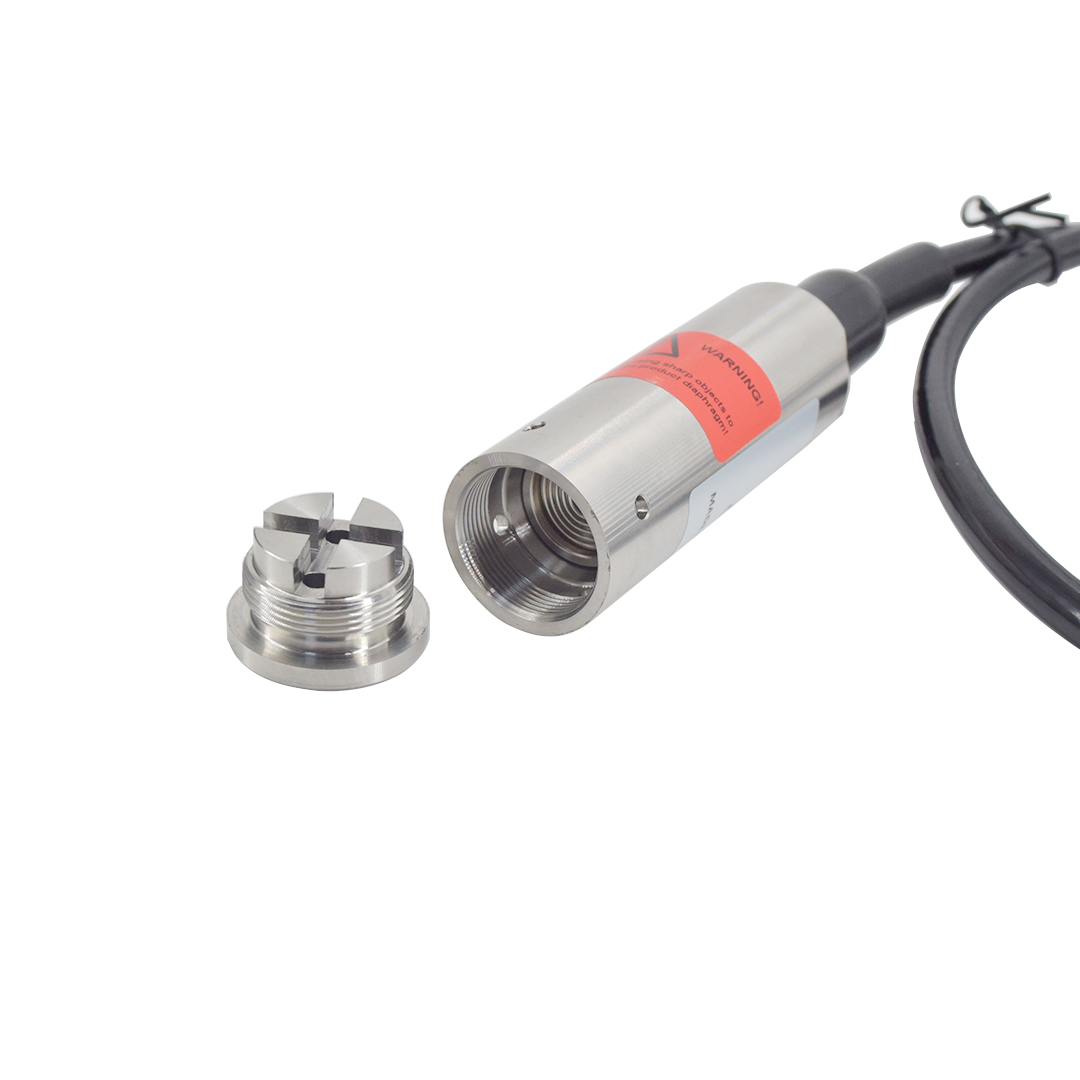

| Diaphragm | stainless steel 316L | Power supply | 11V~30VDC; 12V~30VDC; |
| Sealing ring | Viton | Cable | Φ7.5mm Polyethylene Special Cable |
