DR3710 600bar Hydraulic Gauge Kit Quick Release Coupling Komatsu PC200 Excavator

Description

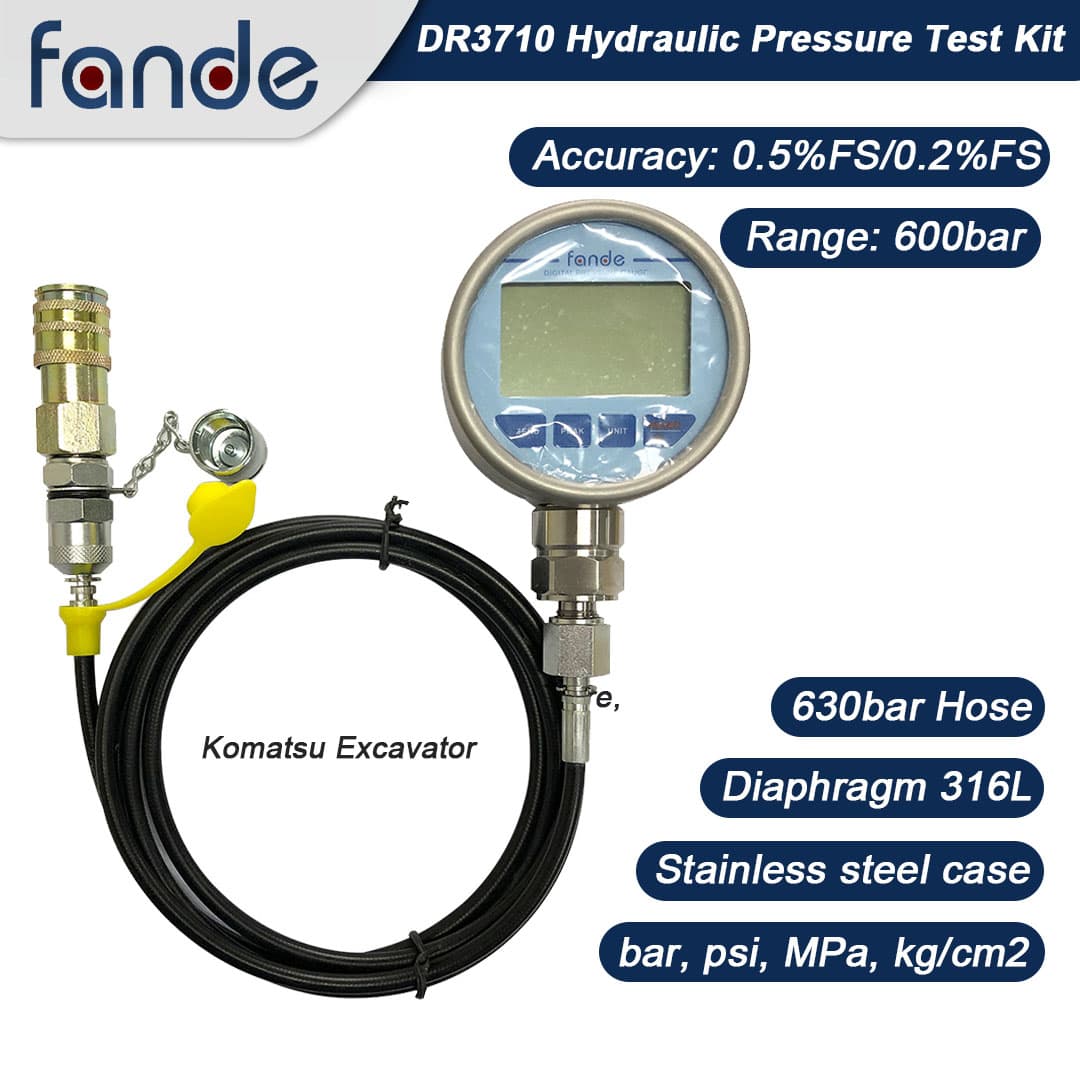

The hydraulic gauge test kit include one DR3710 pressure gauge, hydraulic hose and a quick release coupling connection, the range of the digital pressure gauge is 600bar, the rugged stainless-steel case and AAA battery powered. The Min/Max peak values since the last reset can be displayed at the same time as the current pressure value in a wide variety of units of pressure. The bargraph display function integrated into the display to gives a visual indication of the full range.

The hydraulic gauge test kit is suitable for Komatsu Excavator.

Manual>>

Technical Parameters

Measurement range	-1bar…0bar~0.1bar…2500bar	Diaphragm	stainless steel 316L
Medium type	Gas, water, oil, pure liquid	O-Ring	Viton
Pressure type	gauge, absolute or sealed gauge	Diameter	80mm
Display digits	-19999~19999	Housing thickness	1.5mm
Overload	200%FS	Compensated temp.	0 ℃ ~ + 70 ℃
Pressure accuracy	± 0.1% FS / ± 0.2% FS / ± 0.5% FS	Working temp.	- 20 ℃ ~ + 60 ℃
Tempe. accuracy	± 2 ℃	Storage temp.	-30℃～+70℃
Stability	±0.20 %FS (1 year)	Pressure interface	NPT1/2 NPT1/4 G1/2 G1/4 M20 * 1.5
Response frequency	3.2kHz	Protection level	IP65
Housing	stainless steel 304	Power supply	2 x 1.5 V round cell AAA
