Ultra High Pressure: Measures up to 1600 bar (160 MPa) Pressure Gauge
High Accuracy: ±1%FS precision ensures stable and reliable measurement
Ideal for high hydraulic systems, pressure testing, and oil pipeline monitoring.

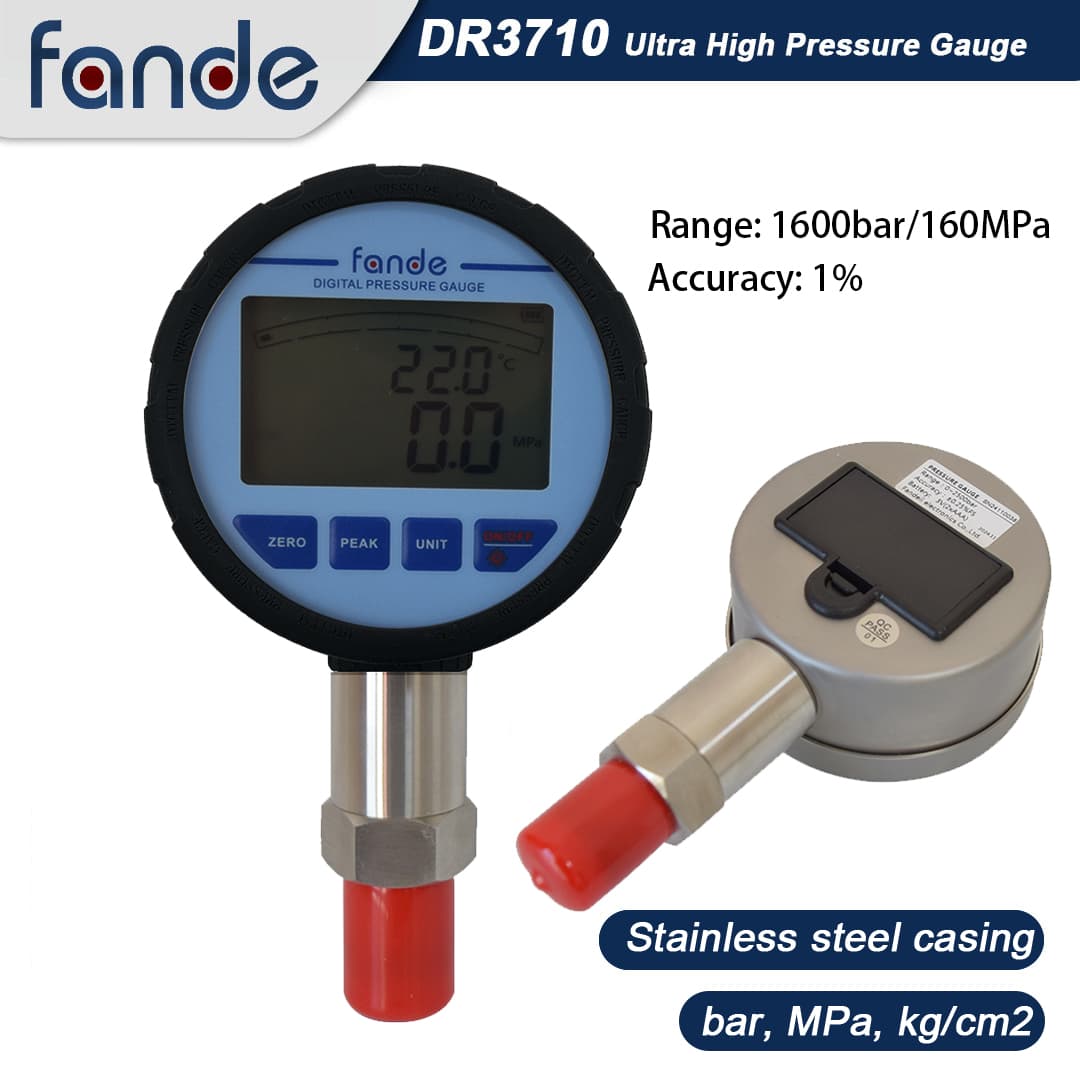

The 1600 bar pressure gauge is a high-precision digital instrument designed for extreme high-pressure industrial environments. With a measurement range up to 160 MPa (1600 bar), it is ideal for hydraulic systems, pressure testing, and oil pipeline monitoring.
Overview of the 1600 Bar Pressure Gauge
Built with a SUS304 stainless steel housing and industrial-grade electronics, this digital pressure meter delivers 1% FS accuracy, excellent stability, and long-term reliability. The integrated 24-bit high-precision AD conversion chip and industrial MCU ensure stable measurement performance in demanding applications such as hydraulic systems, pressure testing, laboratory measurement, and oil pipeline monitoring.
With multiple pressure units, a pressure progress bar display, and max/min value tracking, this gauge offers engineers and technicians a smart, reliable, and durable solution for high-pressure measurement up to 1600 bar.
Key Features of the 1600 Bar Pressure Gauge
Ultra High Pressure Measurement
Supports up to 1600 bar (160 MPa) measurement range, ideal for hydraulic and high-pressure testing systems.
High Accuracy & Stability
Provides ±1% Full Scale accuracy, ensuring precise pressure monitoring for industrial and laboratory environments.
Large Backlit LCD Display
Equipped with a large LCD screen with backlight, allowing easy reading of pressure and temperature even in dark environments.
Dual Display Interface
Simultaneously displays pressure value and ambient temperature with a clear digital interface.
Multiple Measurement Functions
Includes max/min value recording, zero clearing, pressure progress bar, and battery level indication.
Durable Stainless Steel Construction
The SUS304 stainless steel case with 1.5mm thickness provides excellent mechanical strength and corrosion resistance.
Flexible Pressure Unit Switching
Supports bar and MPa pressure units to meet international industrial measurement standards.
Standard Industrial Connection
Features a G1/2″ pressure interface for quick installation in most industrial piping and hydraulic systems.
Technical Specifications of the 1600 Bar Pressure Gauge
| Parameter | Specification |
|---|---|
| Measurement Range | 1600 bar / 160 MPa / 1632.7kgf |
| Pressure Type | Gauge Pressure (standard) |
| Accuracy | ±1% FS |
| Resolution | 1 bar |
| Display | 4½ digit LCD with backlight |
| Temperature Display | 3 digit ambient temperature |
| Overload Capacity | 150% of full scale |
| Pressure Units | bar, MPa, kgf |
| Power Supply | 3V DC (2 × AAA batteries, not included) |
| Signal Processing | Industrial MCU + 24-bit AD conversion |
| Case Material | SUS304 stainless steel |
| Shell Thickness | 1.5 mm |
| Sealing Ring | Viton |
| Dial Diameter | 80 mm |
| Pressure Connection | G1/2″ |
| Compensation Temperature | 0°C ~ 70°C |
| Operating Temperature | -20°C ~ 60°C |
| Protection Rating | IP54 |
| Medium Compatibility | Gas, water, oil, non-corrosive liquids |
Important Technical Note: Resolution & Unit Availability
When selecting your DR3710 digital pressure gauge, please note that the available pressure units (bar, MPa, kPa, etc.) and display resolution depend strictly on your chosen pressure range.
Q1: Why does my gauge not display decimals like 0.1, 0.01, or 0.001?
Answer: This limitation occurs because of the gauge’s display digit capacity. Therefore, you should refer to our Resolution Table before ordering. For instance, the DR3730 features a 4-digit display. If you select a 100MPa (1000 bar) range, the screen cannot show 1000.0 because that requires five digits. Consequently, if your application requires high precision at 1000 bar, we strongly recommend choosing the DR3710 (4-1/2 digits) or the DR-S210 (5 digits) to ensure you see the necessary decimal places.
Q2: Why are some units like PSI or kPa not appearing on my gauge?
Answer: This is also a result of the display digit limit. If a specific unit conversion results in a number that exceeds the available digits, the gauge will hide that unit to avoid incorrect readings. For example, on a 4-digit display (DR3730), a 100MPa range equals 100,000 kPa. Since 100,000 is a 6-digit number, the gauge cannot display “kPa” for that specific range. Additionally, always check the Unit Display Table to ensure your preferred unit is compatible with your required pressure range.
Industrial Applications of the 1600 Bar Pressure Gauge
The 1600 bar digital pressure gauge is widely used in various industrial pressure monitoring and testing applications:
Hydraulic system pressure monitoring
High pressure pump testing
Oil and gas pipeline pressure measurement
Industrial equipment maintenance
Laboratory pressure testing
Compressed gas pressure measurement
Water pipeline pressure monitoring
Factory mechanical maintenance
Its robust design and high pressure capability make it suitable for extreme industrial environments requiring reliable pressure measurement.
Installation & Maintenance Tips
To ensure the longevity of your DR3710 Hydraulic Pressure Gauge, always verify that the process connection matches your pipeline threads (NPT, G, or M20). We recommend using PTFE tape or specialized sealants for a leak-proof fit. Periodic zero-clearing on this digital pressure gauge ensures the highest accuracy class of ±1% FS is maintained over long-term use.
Note: For applications exceeding 1000 bar, please consult our technical team for high-pressure safety protocols.
